GPS/BGT:
GPS Satellite Receiver with LC-Display and control panel in modular housing

Features:

• Integrated satellite receiver
• 2 time trigger inputs
• LC-display, 4 x 16 characters
• 2 RS232 interfaces
• Alarm output
• Frequency synthesizer
• Antenna connected with up to 300m of standard coaxial cable RG58
• expansions/configurations available (optional)

This product is fully RoHS compliant

The first choice for a broad range of applications, including time and frequency synchronization tasks
The GPS receiver module generate fixed and programmable standard frequencies with very high accuracy and stability. The pulse generator of the GPS receiver generates pulses per second and per minute. Optional three programmable outputs are available.

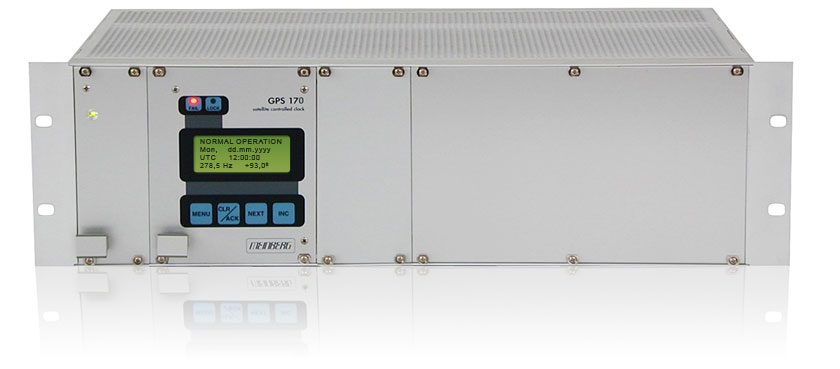

The front panel of the GPS receiver integrates a LC-Display that shows information regarding the GPS receiver in different menus. In combination with four push buttons it is also used to setup all configurable parameters.

The GPS/BGT chassis provides different optional outputs, i.e. four progammable pulse outputs, modulated/unmodulated time code output, and up to a total of four RS232 COM ports. Additionally, you can order the GPS/BGT with different OCXOs (e.g. OCXO-LQ / MQ / HQ / DHQ or an external Rubidium) to match the required accuracy.

List of possible outputs:

• IRIG Time Code
  DC Level Shift (DCLS) or modulated (AM)
• Pulses
  Pulse Per Second(PPS), Pulse Per Minute (PPM), Pulse Per Hour (PPH), free programmable pulses
• Frequencies
  Frequency synthesizer from 1Hz-10MHz, E1, T1 (telcom frequencies)
• Serial Interfaces
  RS232, RS422
• Network Interfaces
  NTP, PTP (IEE1588 V1 and V2), X-Port for configuration and control (SNMP)

Ask for an appropriate offer for your desired configuration.
