GPS/MP:
GPS System in Modular Case
Features:
- Option: LC Display for configuration
- 2 time trigger inputs
- Pulses per second and per minute
- 2 RS232 interfaces
- integrated power supply (85 ... 264VAC)
- Optional (only .../F4/... models):
- four frequency outputs
- 2.048MHz direct, 3.0Vpp into 50 Ohm
- 2.048MHz switched, 3.0Vpp into 25 Ohm
- 10MHz direct, 3.0Vpp into 50 Ohm
- 10MHz switched, 3.0Vpp into 25 Ohm - alarm relay output, changeover contact
- Including GPS antenna, 20m standard cable and manual on USB key

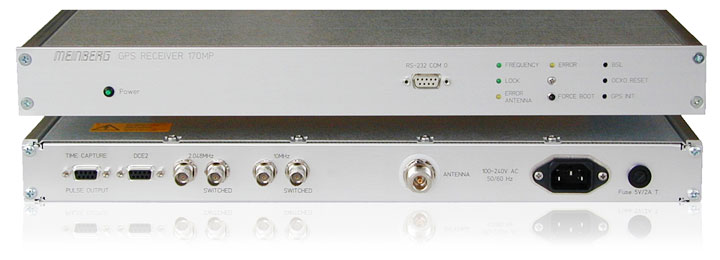

The ready-to-operate system GPS/MP is built up in 19inch slimline modular case (1U). The front panel integrates a 2 x 40 character LC display (as an option), two LED indicators and five push buttons. The receiver is connected to the antenna unit by a 50 ohm coaxial cable.
The GPS satellite receiver clock has been designed to provide extremly precise time to its user. The clock has been developed for applications where conventional radio controlled clocks can´t meet the growing requirements in precision. High precision available 24 hours a day around the whole world is the main feature of the system which receives its information from the satellites of the US-controlled Global Positioning System (GPS).
