Data Sheet
Meinberg Product Page
LANTIME M320/TCR:
IRIG Time Server with Time Code Receiver
Features:
- Integrated IRIG A/B Time Code Receiver
- Reception of time code formats IRIG-A/B or AFNOR NFS 87-500

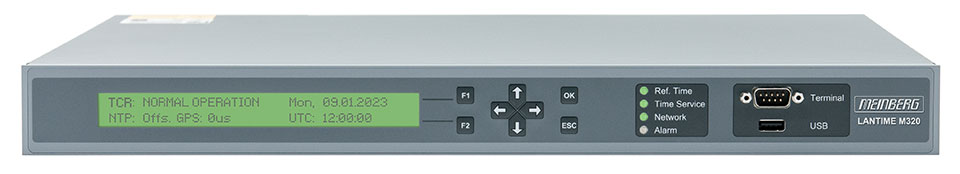

- LC-Display, 2 x 40 characters, with backlight

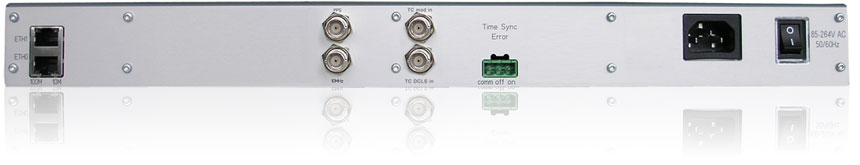

- Outputs: 10 MHz, Pulse Per Second (PPS) via female BNC connectors
- Network interfaces: 2 x 10/100 MBit with RJ45 connector
- Options:
up to 4 x additional 10/100 MBit with RJ45
up to 2 x additional 100 MBit with fibre optic SC connector, duplex
up to 3 x 10/100/1000 MBit with RJ45 jack
The Meinberg LANTIME M320/TCR IRIG time server provides accurate time to networks of any size. It synchronises all systems either NTP- or SNTP-compatible and comes with a built-in Meinberg TCR module which decodes a IRIG/AFNOR signal from any compatible time code generator. A highly stable and precise oscillator is capable of bridging failures or a temporary loss of the IRIG signal.
The LANTIME M320/TCR Network Time Server combines a Time Code Receiver module with an embedded Linux computer.
Because of its modular system architecture it is possible to equip a LANTIME time server with up to two additional ethernet ports and a number of different reference time sources. Optionally several additional frequency-, serial string- and pulse outputs are available. Besides that several oscillators ensure fantastic holdover characteristics (e.g. when the IRIG/AFNOR signal is disturbed or not available): the reliable temperature controlled base model (TCXO) and the excellent oven controlled OCXO (LQ, SQ, MQ, HQ, DHQ).
