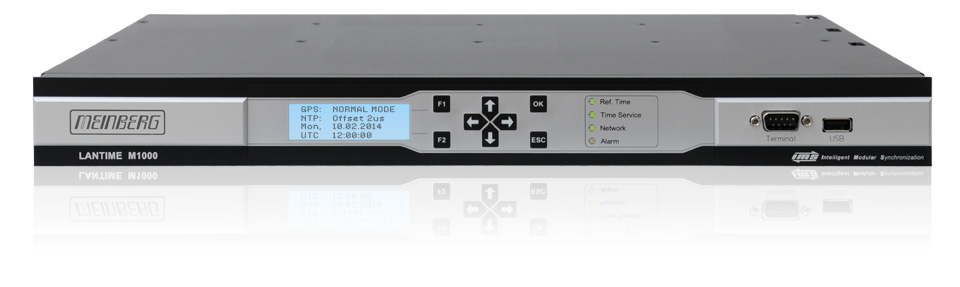

Modular NTP Server and PTP Grandmaster/Slave LANTIME M1000

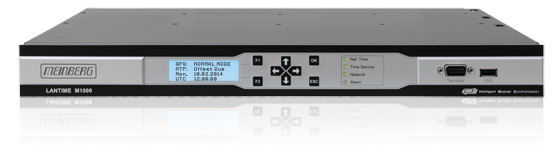

The LANTIME IMS M1000 already offers a broad range of input and output modules and can be customized to meet the special requirements of your application.
Get Pricing Now!

Features:

  • IMS - Intelligent Modular Synchronisation platform
  • Hot swappable, field-replaceable modules
  • Endless combinations of modules
  • Optimized space usage
  • Redundant power and reference sources
  • Web based management for all modules
  • Up to 16 additional LAN ports
  • Up to 4 PTP (IEEE 1588-2008) modules
  • Various types of I/O modules
  • Rubidium option via external chassis

The modularity concept of the of the IMS Systems allows the LANTIME M1000 to be individually configured to take over specific roles in a network infrastructure by only adding one single module instead of implementing a completely new system into your network. The IMS System is therefore suitable for almost every application in many different industry sectors:

Power

  • Offers a mix of synchronisation outputs for different devices like IEDs and SCADA systems
  • IEEE 1588 Grandmaster (multi-profile, incl. IEEE 1588-2008, IEEE C37.238-2011, C37.238-2017 IEC, 61588, IEC 61850-9-3 and IEC 62439-3 Annex B)
  • IRIG and AFNOR Time Codes (DCLS and AM) In/Out
  • (S)NTP Time server with HW time stamping

Telecom

  • GNSS (GPS, Galileo, BeiDou and/or Glonass) synchronised PRTC (compliant to ITU-T G.8272)
  • IEEE 1588 Grandmaster (multi-profile, incl. ITU-T G.8275.1, ITU-T G.8275.2 and 8265.1)
  • E1/T1 BITS and Clock In/Out (ITU-T G.703)
  • 2048 unicast clients at full rate
  • Synchronous Ethernet In/Out
  • For all areas of a mobile backhaul network: core, metro or access levels

Finance

  • MiFID II Compliance (a timestamping accuracy of better than 100 microseconds)
  • PTP and NTP Client Monitoring and Auditing
  • Highly accurate and reliable synchronisation of computer systems in financial applications
  • Combines PTP Grandmaster (multi-profile, incl. Default, Hybrid / Enterprise) and NTP Server with 10 ns time stamp accuracy
  • DSCP and IEEE 802.3p QoS

Broadcast

  • Can easily be integrated in hybrid environments, as well as in All-IP scenarios
  • Sync in SMPTE ST 2110 All-IP infrastructures, which use the PTP profile SMPTE ST 2059-2

    • Video Formats:
    PAL (VITC Support)
    NTSC Black Burst

    Video Signals:
    HD/SD Video Syncs
    (Tri-Level/Bi-Level Sync)
    H-Sync and V-Sync

    Audio Signals:
    Programmable word clock rates between 24Hz – 12.288MHz
    AES11-2003 (DARS)
