Data Sheet
Meinberg Product Page
LANTIME M400 - GPS Time Server for DIN Rail Mount
Features:
- Synchronization of NTP and SNTP compatible clients
- Web based status and configuration interface (Demo) and console based graphical configuration utility
- Supported networking protocols: IPv4, IPv6, HTTPS, HTTP, SSH, TELNET, SCP, SFTP, FTP, SYSLOG, SNMP
- Alert-Notification system of status change by Email, WinMail, SNMP or an external connected display
- Full SNMP v1,v2,v3 support with own SNMP-daemon for status and configuration and SNMP Trap messages
- USB port for performing updates, lock front panel, and backup/restore configuration and log files.
- Antenna connected with up to 300m of standard coaxial cable RG58
- Up to 9 network interfaces (XL Version)
The LANTIME M400 Time Server has flexibility similar to the M300 rackmount series, and provides accurate time to your network in a compact and full-featured DIN railmount package. It is the perfect solution where full LANTIME functionality and versatility are required in a compact industrial chassis for industrial process automation and power system applications.
Different Synchronization Sources
A wide range of different synchronization sources can be ordered, the device is available with GPS, IRIG, PZF(DCF77), WWVB and MSF receivers built into the railmount housing. The MRS model offers multiple synchronization input possibilities, including GPS, NTP, PPS, 10MHz and PTP.
IEEE Standard Profile for Use of IEEE 1588 Precision Time Protocol in Power System Applications
The M400 is one of the worlds most compact PTP (Precise Time Protocol, IEEE 1588) Grandmaster Clocks and supports the following PTPv2 (IEEE 1588-2008) features:
- Layer 3 (IPv4),
- Layer 2 (Ethernet) communication,
- Multicast and Unicast mode as well as both
- End-to-End (E2E) and
- Peer-to-Peer (P2P) delay measurements.
M400 PTP Slave Clock
Used as a PTP Slave Clock, the M400/MRS allows to generate all output signals (IRIG, PPS, Programmable Pulses, Frequencies, NTP) when it is synchronized to a remote IEEE 1588 Grandmaster. This provides a convinient way to use cutting edge IEEE 1588 network synchronization while still being able to generate legacy signals that are required by existing and non-network/PTP capable equipment.

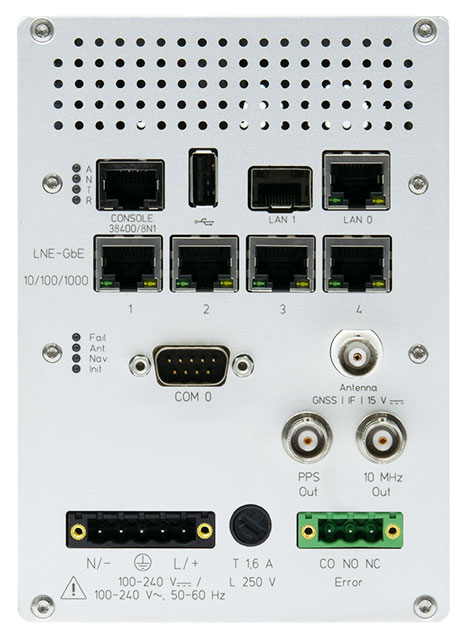

Up to nine Ethernet interfaces
The M400 can be ordered with more than one Ethernet interface. In the standard chassis, up to five network ports are available for connecting to different subnets or to provide redundant network connections. The XL chassis is available with nine Ethernet ports.
Features, Warranty and Support
The M400 can be configured and produced based on the end customers requirements: The type and number of different outputs, up to 6 different oscillator options and the exact length of the RG58 antenna cable (up to 350 meters without amplification) can be selected for each single device.
The M400 comes with a 3-year warranty (can be extended to 5 years) and free lifetime support (via telephone and E-Mail) as well as free firmware updates.
